Laser Stations/Total Stations

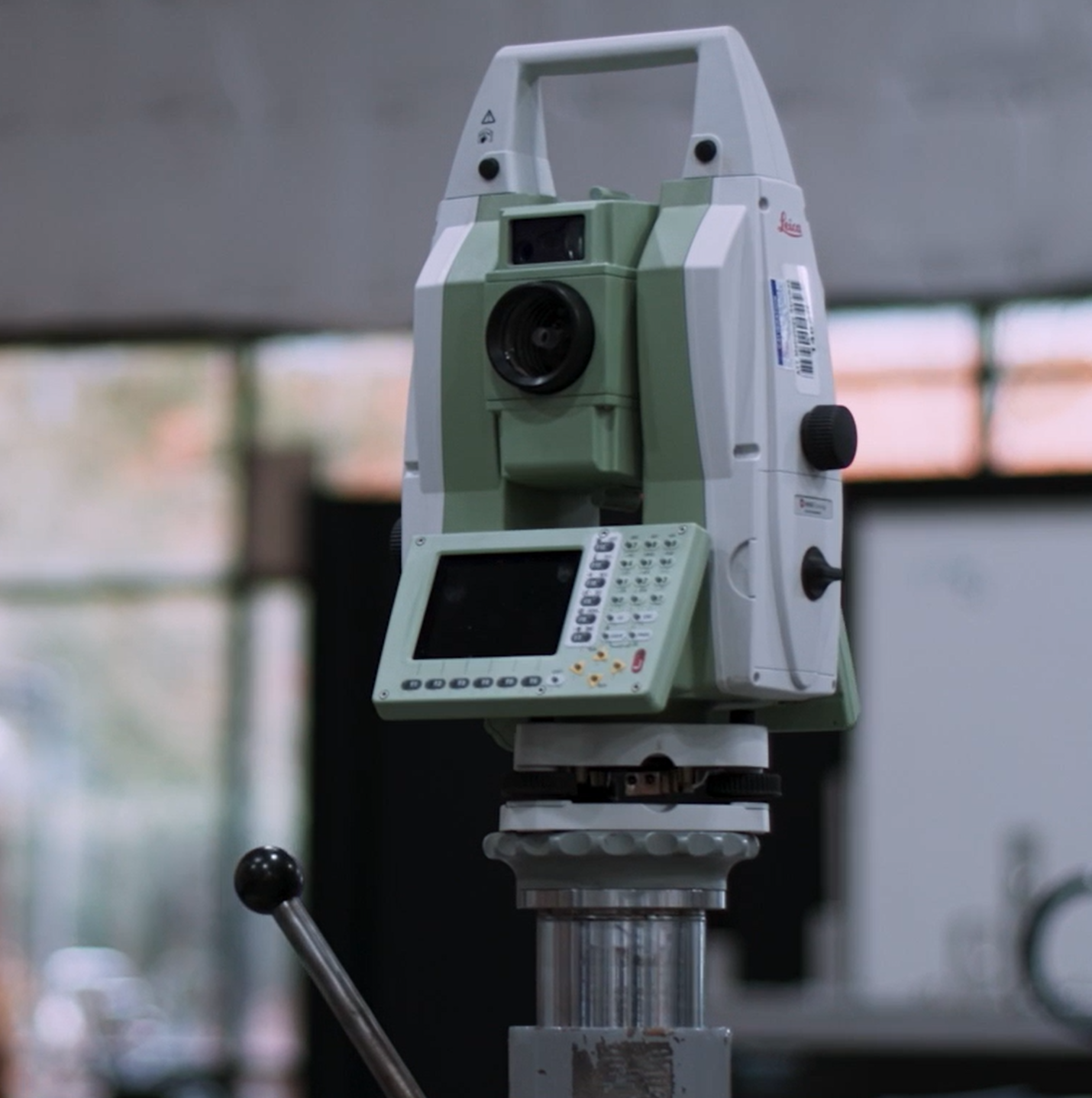

The new Leica TDRA6000 introduces new and improved technology. With an all new direct drive technology, reflectorless measurements and a typical 3D point accuracy of 0.25 mm at 35 meters, this new generation of Laser Station incorporates Leica Geosystems‘ long experience developing industrial laser stations.The new Leica TDRA6000 is the most accurate total station ever designed for industrial use. This new Leica Geosystems laser station has the ability to automatically target both CCR and tape targets and can even measure without targets maintaining a typical reflectorless accuracy of 1 mm. Optimized for use within 300 meters and combined with the Leica Geosystems PowerSearch module, the new Leica TDRA6000’s tracking performance is simply unbeatable.

An all new Leica Geosystems proprietary direct drive technology has been designed from the ground up for this new sensor. Based on Piezo technology, these new direct drives enable high speed motorization and acceleration, at up to 4x the previous generation, but still allow sub micron level fine positioning. This technology has very low power consumption, requires almost no maintenance and is near silent.

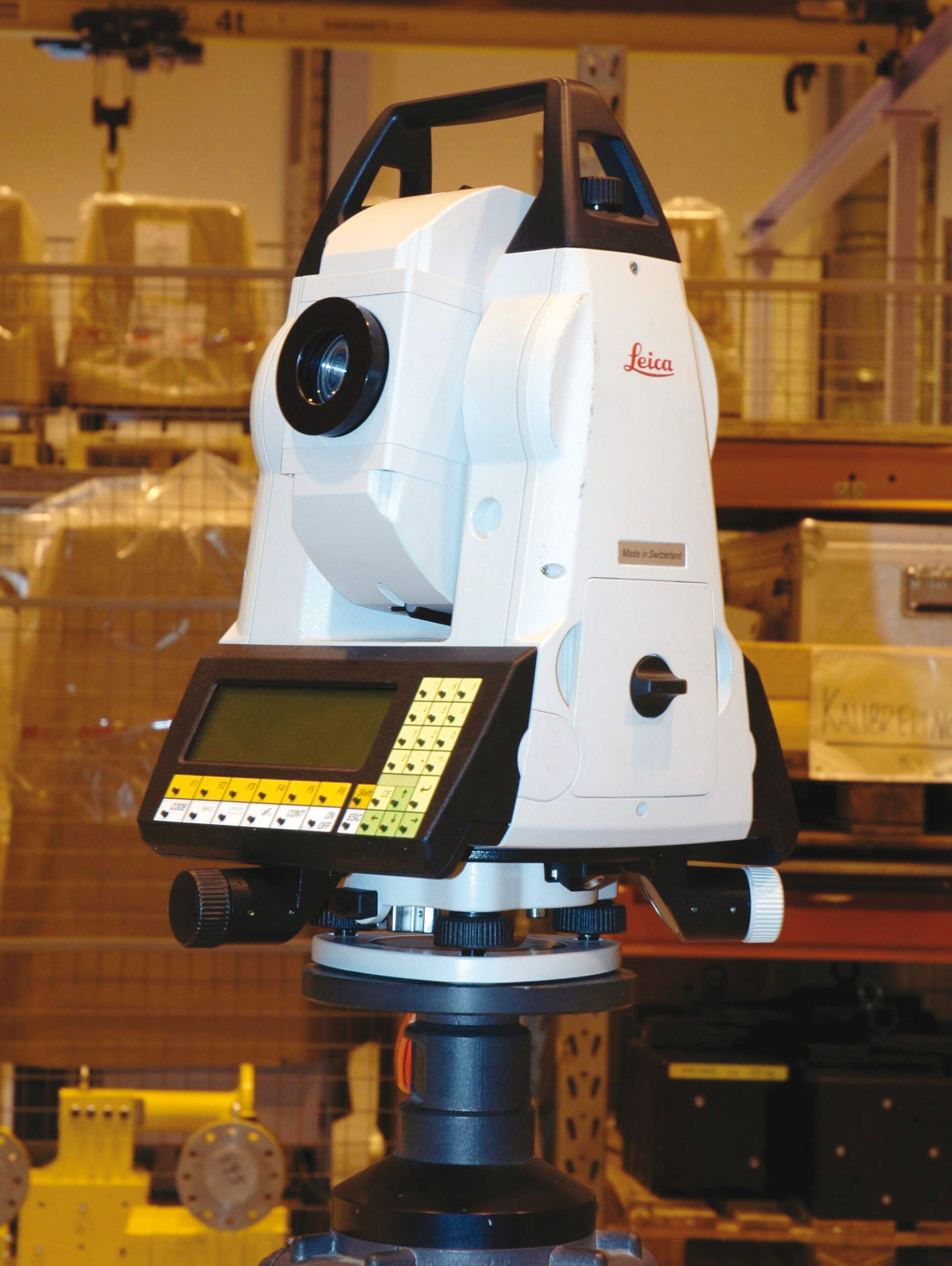

The Total Station for extremely large part inspection and assembly. Its ability to locate and track a target makes the Leica TDA5005 Industrial Laser Station perform much like a standard laser tracker. Additional tracker-like capabilities make it an ideal tool for extremely large-part inspection and assembly.The built-in precision distance meter and its ability to locate and track a target make the Leica TDA5005 Industrial Laser Station perform much like a standard laser tracker. Additional tracker-like capabilities, such as fast and flexible one-man operation, along with a measurement volume far above 500 m (1,640 ft), make it an ideal tool for extremely large part inspection and assembly.
